Narrow band filter, bandpass filter a. For from the composite optical isolated in a narrow band monochromatic filter

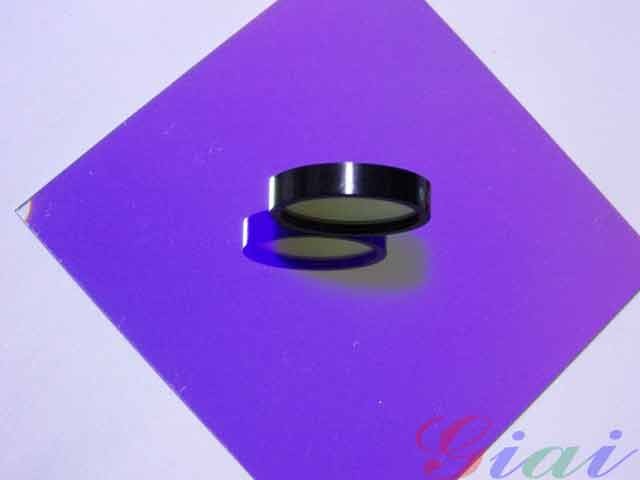

394nm narrowband filter
Characteristic.
High transmission, Takawa Naga passband transmission, high precision, high blockage, high stability.
Optical indicator:
Material: float glass
Size:Φ 12.5× 6 ( mounted ), can be customized
Incident angle: 0 °
The center wavelength: 394 ± 2nm
Half high width: 10 ± 2nm

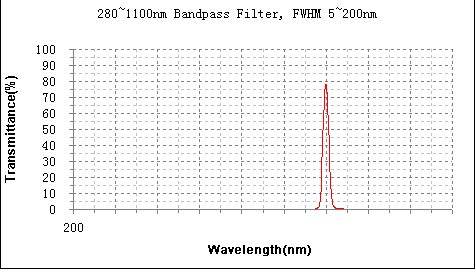

Peak transmittance: >50%@394nm, 200-1000nm interval bandpass, T<0.02%
Aperture:Φ >8 mm
Other indicators: can be customized
Range of application:
Spectrum device,
Fluorescence analysis instrument,
Biochemical equipment.
Medicine and clinical instrument,
Telecom,
Analytical instrument
Laser narrow band pass filter
